Accessing XML REST API using FastAPI by creating swagger UI

To create a swagger UI for XML Rest API using FastAPI,

we have taken public xml based public REST Api : http://www.dneonline.com/calculator.asmx

install the below pip modules

requests
fastapi
uvicorn

Post installation of create a sample program with filename: main.py like below to access the api

main.py

import requests
import logging
from typing import Optional
from typing import Union
from fastapi import FastAPI, Response

#from enum import Enum


from requests.packages.urllib3.exceptions import InsecureRequestWarning
requests.packages.urllib3.disable_warnings(InsecureRequestWarning)

logging.basicConfig(filename="std.log", format='%(asctime)s %(levelname)s %(message)s', filemode='w')

logger=logging.getLogger()

logger.setLevel(logging.DEBUG)

def getdata_dneonline(newurl, newfname,x,y):
    try:
        #url = "http://www.dneonline.com/calculator.asmx"
        #f = open("addHelper.xml", "rt")
        f = open(newfname, "rt")
        payload = f.read()
        f.close()
        headers = {
            'Content-Type': 'text/xml'
        }
        response = requests.request("POST", newurl, headers=headers, data=payload.format(a=x,b=y))
        logger.debug(response.text)
        return response.text
    except Exception as e:
        print("Err: ", e)


#untangle.parse(getdata_dneonline("http://www.dneonline.com/calculator.asmx", "addHelper.xml"))

app = FastAPI()

@app.get('/addition')
async def calculator_add(inputA: int, inputB: int):
    #return getdata_dneonline("http://www.dneonline.com/calculator.asmx", "addHelper.xml")
    return Response(content=getdata_dneonline("http://www.dneonline.com/calculator.asmx", "addHelpers.xml",inputA,inputB), media_type="application/xml")

@app.get('/subtraction')
async def calculator_sub(inputA: int, inputB: int):
    #return getdata_dneonline("http://www.dneonline.com/calculator.asmx", "addHelper.xml")
    return Response(content=getdata_dneonline("http://www.dneonline.com/calculator.asmx", "subHelpers.xml",inputA,inputB), media_type="application/xml")

@app.get('/Multiply')
async def calculator_multiply(inputA: int, inputB: int):
    #return getdata_dneonline("http://www.dneonline.com/calculator.asmx", "addHelper.xml")
    return Response(content=getdata_dneonline("http://www.dneonline.com/calculator.asmx", "multipleHelpers.xml",inputA,inputB), media_type="application/xml")

@app.get('/Division')
async def calculator_divide(inputA: int, inputB: int):
    #return getdata_dneonline("http://www.dneonline.com/calculator.asmx", "addHelper.xml")
    return Response(content=getdata_dneonline("http://www.dneonline.com/calculator.asmx", "divideHelpers.xml",inputA,inputB), media_type="application/xml")

To start program execute below command

uvicorn main:app --reload

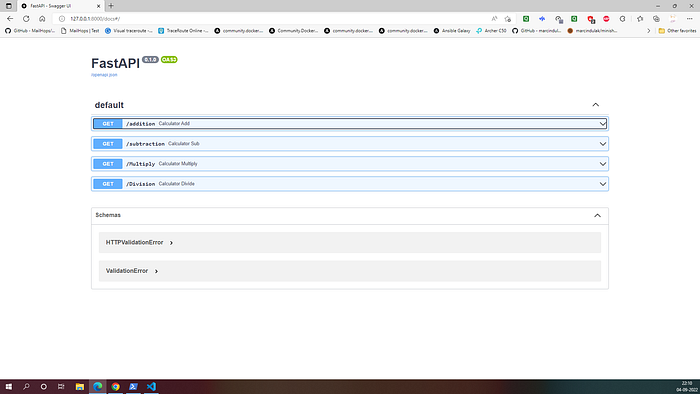

post starting service, access the url https://127.0.0.1:8000/docs, it will open the swagger ui like bloew

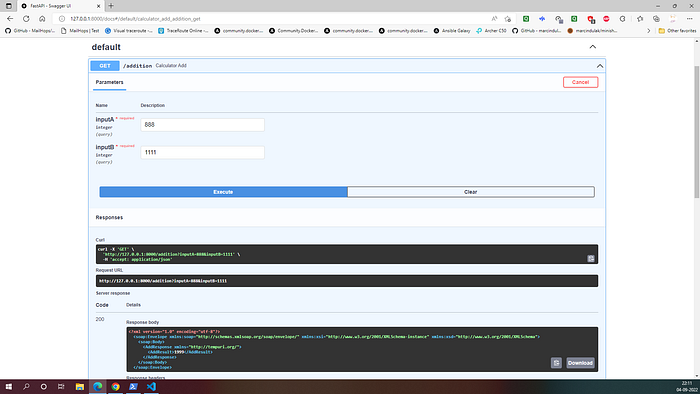

you can playing with public rest api like below

You can get the sample code from my github: https://github.com/hemanth22/python-restapi/tree/feature/logger

If you like the blog, please like and comment and share.
